Derale 9 Row Series 9000 Plate & Fin Cooler 33602

Product Description

Very popular with original equipment manufacturers for use on their towing applications, our Plate and Fin coolers is no exception, featuring strong furnace-brazed construction, 1 1/4" wide plates and embossed turbulators which maximize heat transfer while also minimizing pressure drop. This unit is perfect for light to medium duty use and occasional towing. It greatly extends transmission life by preventing heat-related transmission failures, and improve shifting performance. Built with 1/2" FTP cooler ports.

Features:

Prevents heat related transmission failures
Extends life of transmission
Improves transmission performance
Sturdy furnace-brazed aluminum construction
All Derale coolers are rated at 250psi working pressure and 300psi burst strengthi.
9 row cooler design
1-1/4" turbulators maximize cooling & minimize pressure drop
BTU: 14000
Cooler Only
Fluid Capacity: 6 oz

Specifications:

Cooler style: Plate & Fin
Construction: Aluminum
BTU: 14000
Inlet size: 1/2" FPT

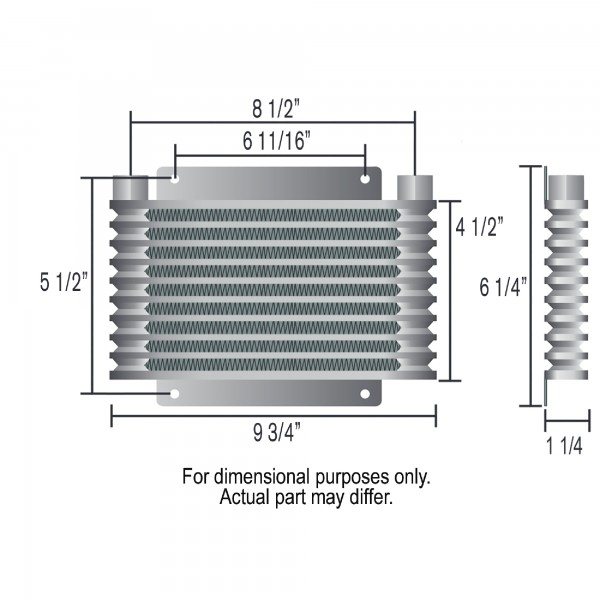

Width: 9-3/4"
Height: 6-1/4"
Depth: 1-1/4"
Inlet dim: 8-1/2"
Mounting: 6-11/16" x 5-1/2"
